Donened - Earth Auger, 52cc 2 Stroke Petrol Spiral Digger with 3 Drill Bits (100mm, 150mm, 200mm), Extension & Tool Kit, Fence Post Hole Borer Ground

Brand: Donened

Color: Orange, Black

Features:

• GREAT POWER : With its two-stroke fuel engine, this digger has a powerful horsepower(1.46kw/1.98hp), which makes it easier and more efficient to dig holes to save more valuable time and make digging an enjoyable experience

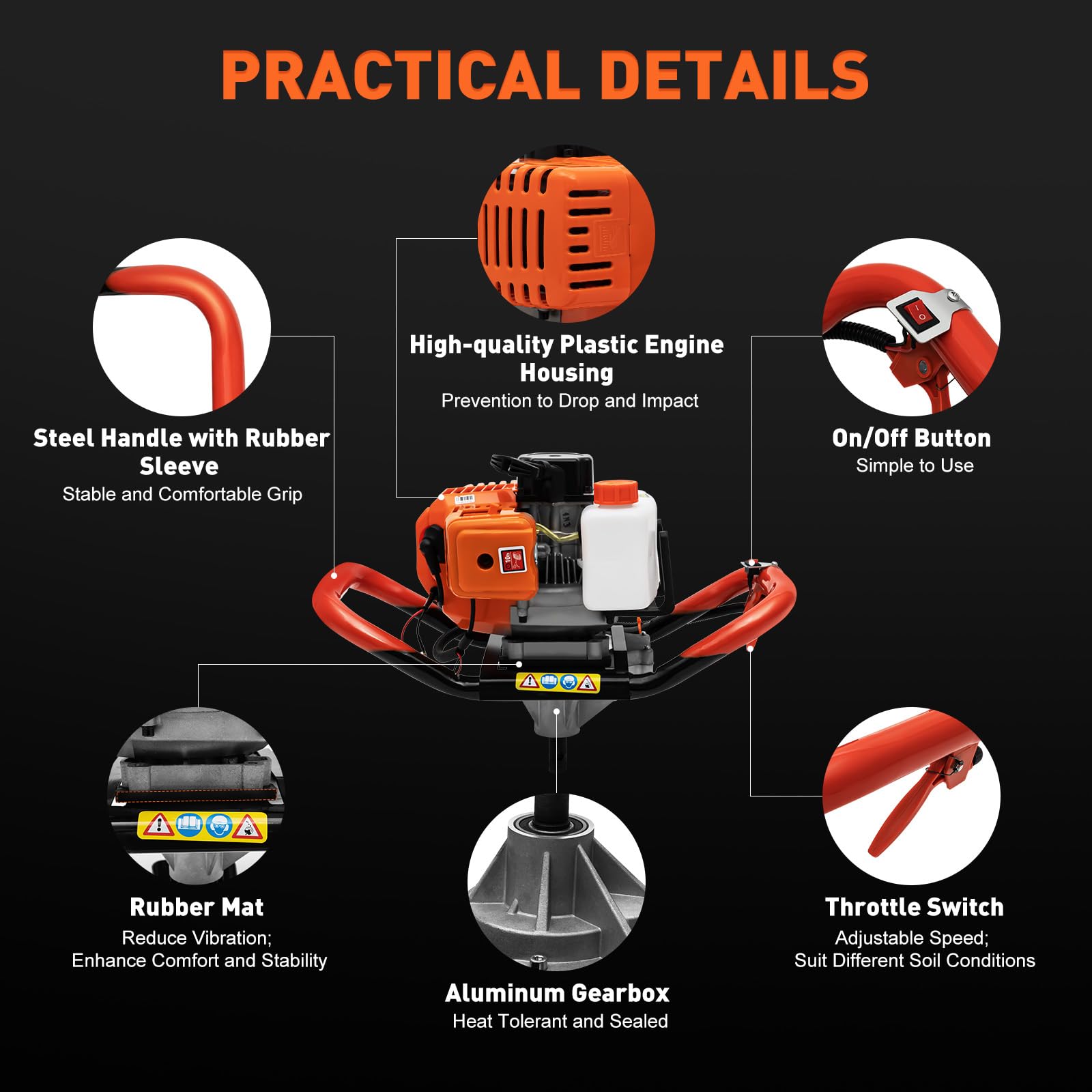

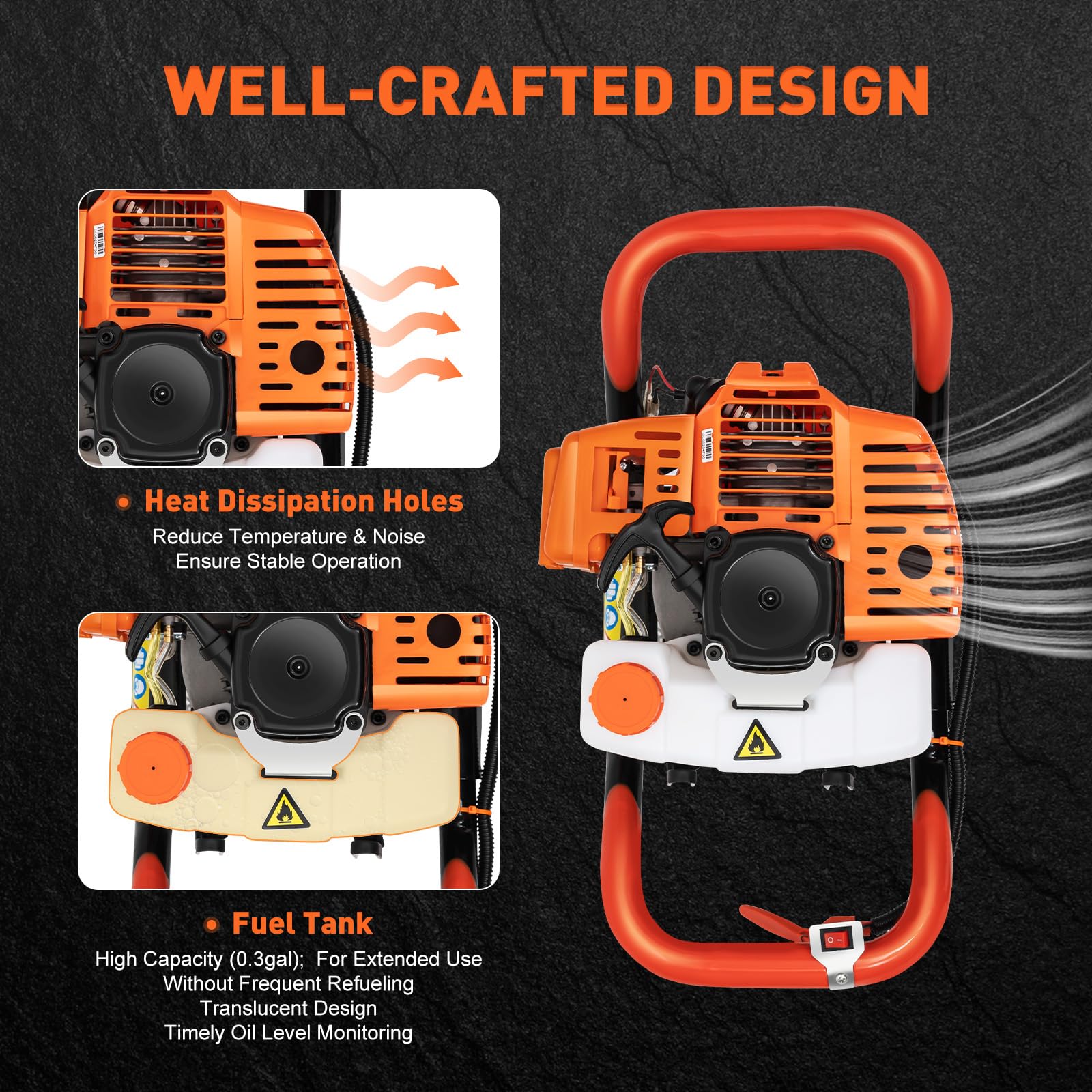

• STURDY AND DURABLE : Steel handles and manganese steel alloy drills have high strength and hardness, and are not easy to rust and corrosion. The aluminum gearbox has high-temperature resistance and good sealing. The high-quality plastic engine housing is drop and impact-resistant and protects the internal parts
• EASY TO CONTROL : The on/off button and smooth manual starter make it simple to use, so even novices can master it quickly. The digging speed can be adjusted at will by adjusting the force of pressing the throttle switch on the grip to suit different soil conditions
• SMOOTH RUNNING : Smoothly rotating high-speed alloy shaft and enlarged deepened cylinder make it more stable and less noisy when digging holes for your better using experience
• GUARANTEED CUSTOMER SERVICE : We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible

Part Number: S6V5FHBUP,K

Details: Description:

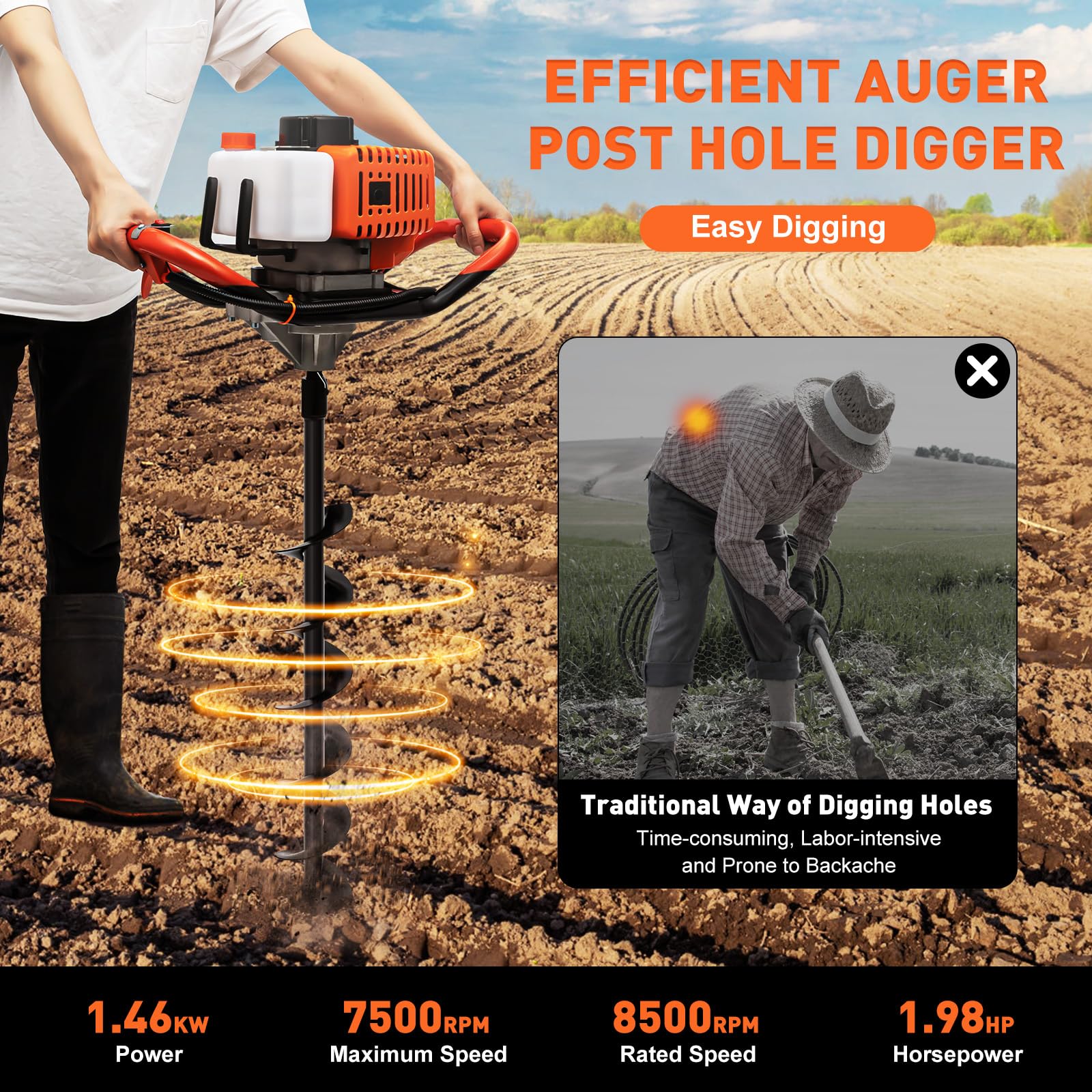

The traditional way of digging a hole with a hoe is time-consuming, labor-intensive, and prone to backache at the end of the process. Advancement in technology has brought about labor-saving and professional digging equipment which is ready to liberate you from the hassle of manual digging. Equipped with a powerful fuel engine, this auger post hole digger digs more efficiently than manual trenching.

Application: It can be drilled in epidermal turf and clay, and can be used for tree planting holes, fence stakes, greenhouse stakes, fiber optic cable pole stakes, tree fertilization stakes, etc.

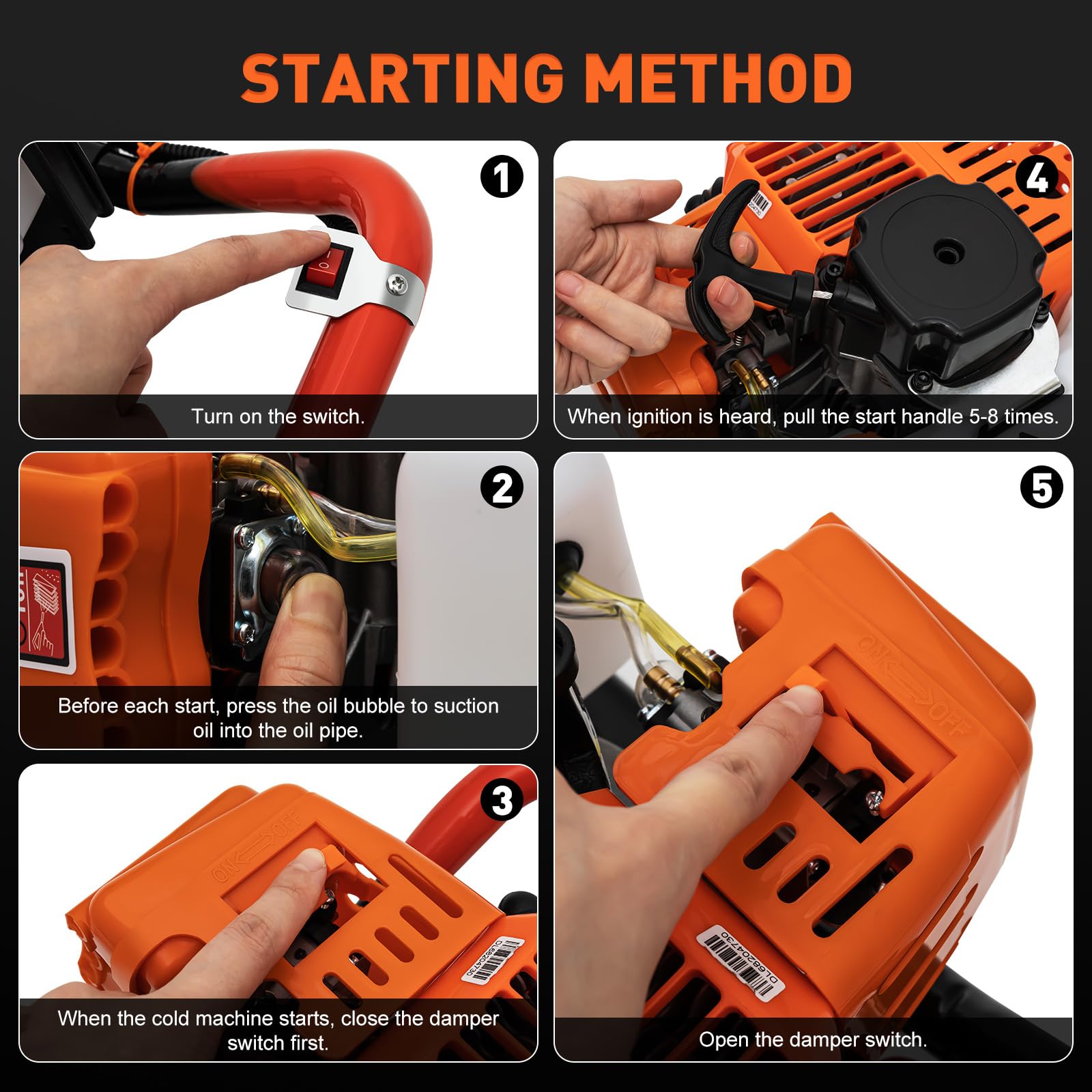

Starting Method:
1. Turn on the switch.
2. Before each start, press the oil bubble to suction oil into the oil pipe.
3. When the cold machine starts, close the damper switch first.
4. When ignition is heard, pull the start handle 5-8 times.
5. Open the damper switch.

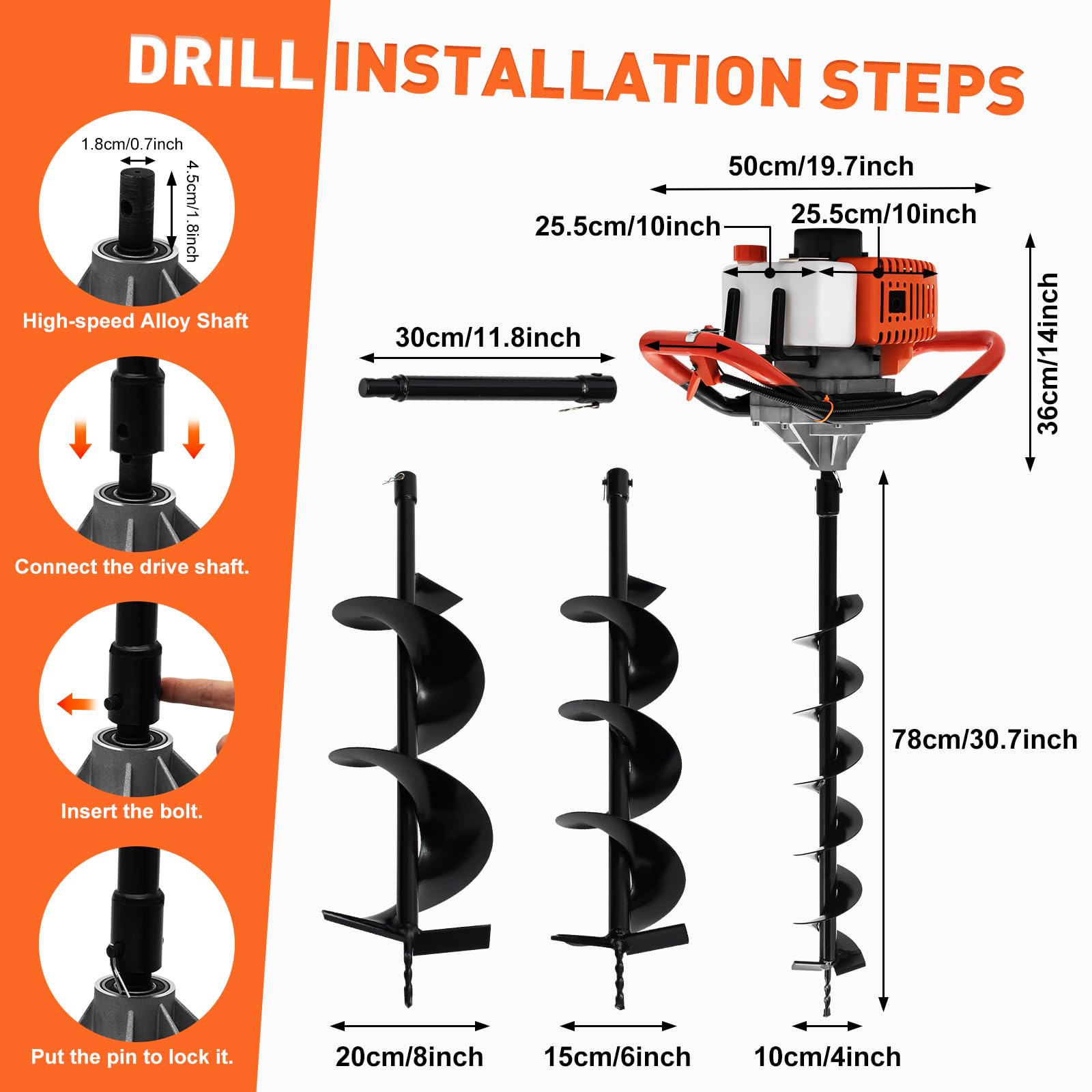

Drill Installation Steps:
1. Connect the drive shaft.
2. Insert the bolt.
3. Put the pin to lock it.

Specification:
Model: IE44F-5
Material: Steel, Plastic, Rubber, Aluminum, Alloy, Manganese Steel Alloy
Color: Orange, Black
Engine Type: Single Cylinder, 2-stroke, Air-cooled
Displacement: 52cc
Mixed Fuel: Gasoline:Two-stroke Oil (25:1)
Ignition System: C.D.I.
Power: 1.46kw
Fuel Tank Capacity: 1.2L/0.3gal
Maximum Speed: 7500rpm
Rated Speed: 8500rpm
Horsepower: 1.98hp
Drill Diameter: 10cm/4inch, 15cm/6inch, 20cm/8inch
Shaft Size: 1.8*4.5cm/0.7*1.8inch
Drill Length: 78cm/30.7inch
Extension Bar Length: 30cm/11.8inch
Engine Size: 25.5*25.5cm/10*10inch
Digger Whole Size: 50*22*36cm/19.7*8.7*14inch
Drill Package Size: 80.5*23.5*32cm/31.7*9.3*12.6inch
Digger Package Size: 39*36.5*28.5cm/15.4*14.4*11.2inch
Drill Net Weight: 8kg/17.6lbs
Digger Net Weight: 8.2kg/18lbs

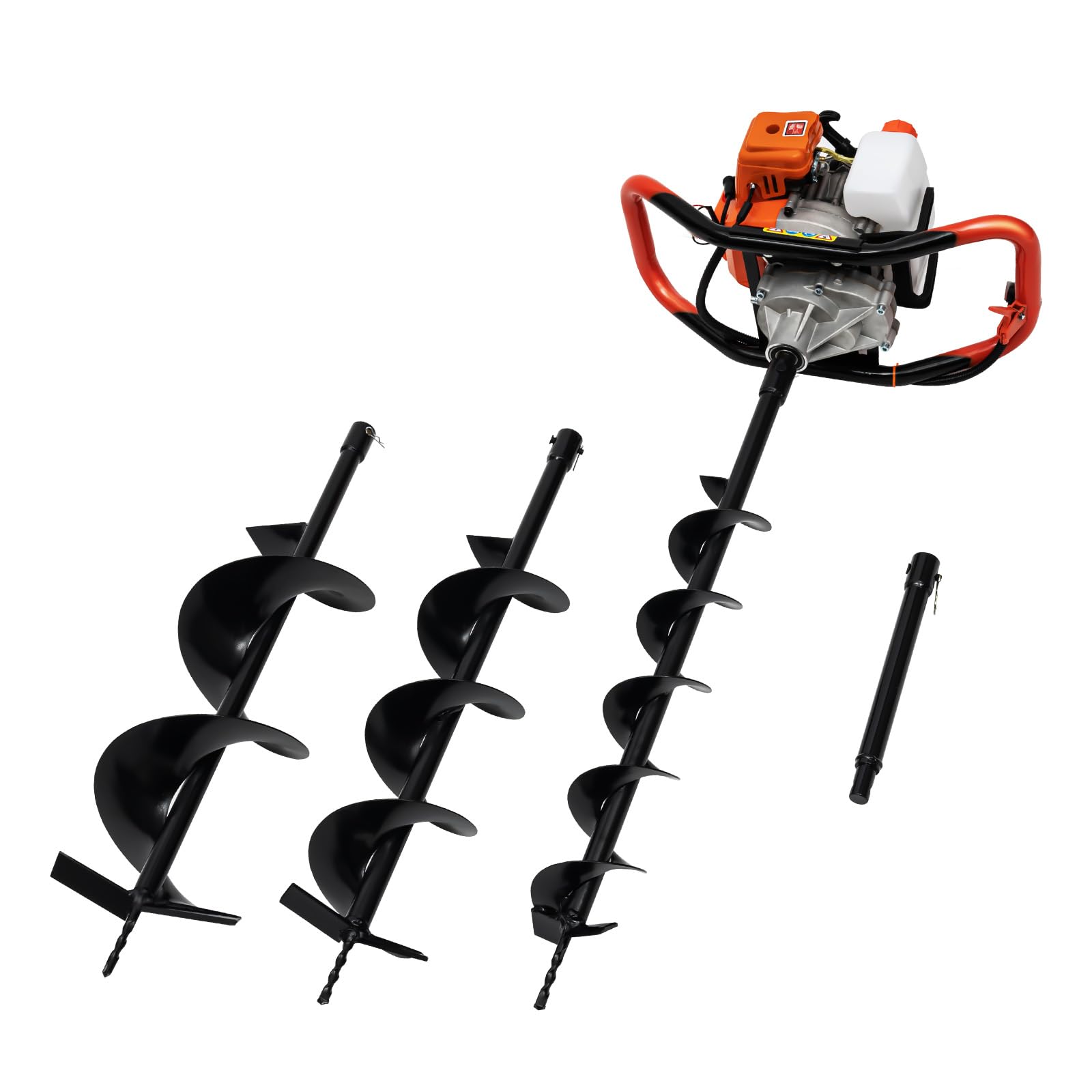

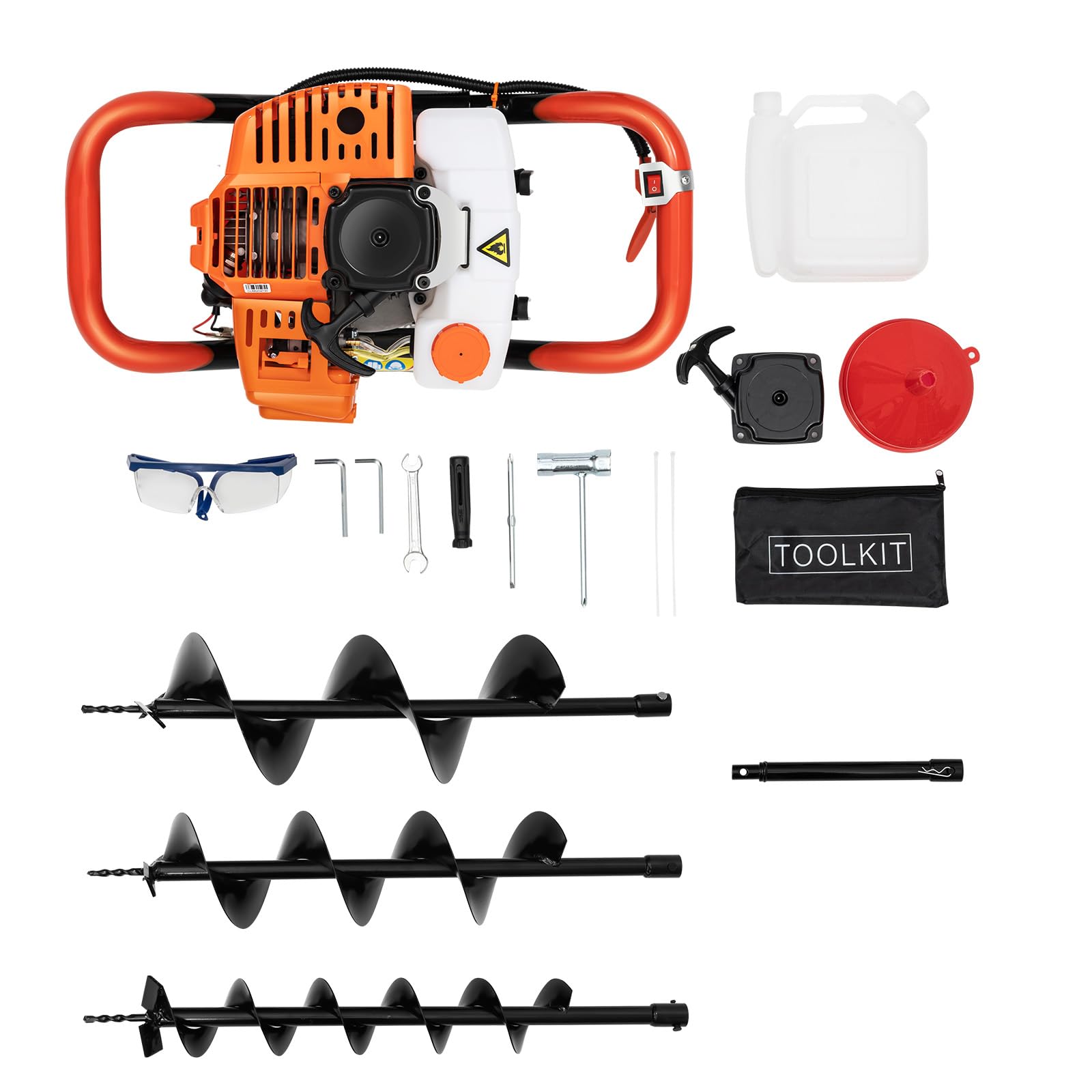

Package Included:
1 x Auger Post Hole Digger
3 x Drill Bits
1 x Extension Bar
1 x Fuel Oil Mixing Bottle
1 x Funnel
1 x Spare Starter
1 Pair x Goggles
1 x English Manual
Tool Kit for Assembly

Notes:

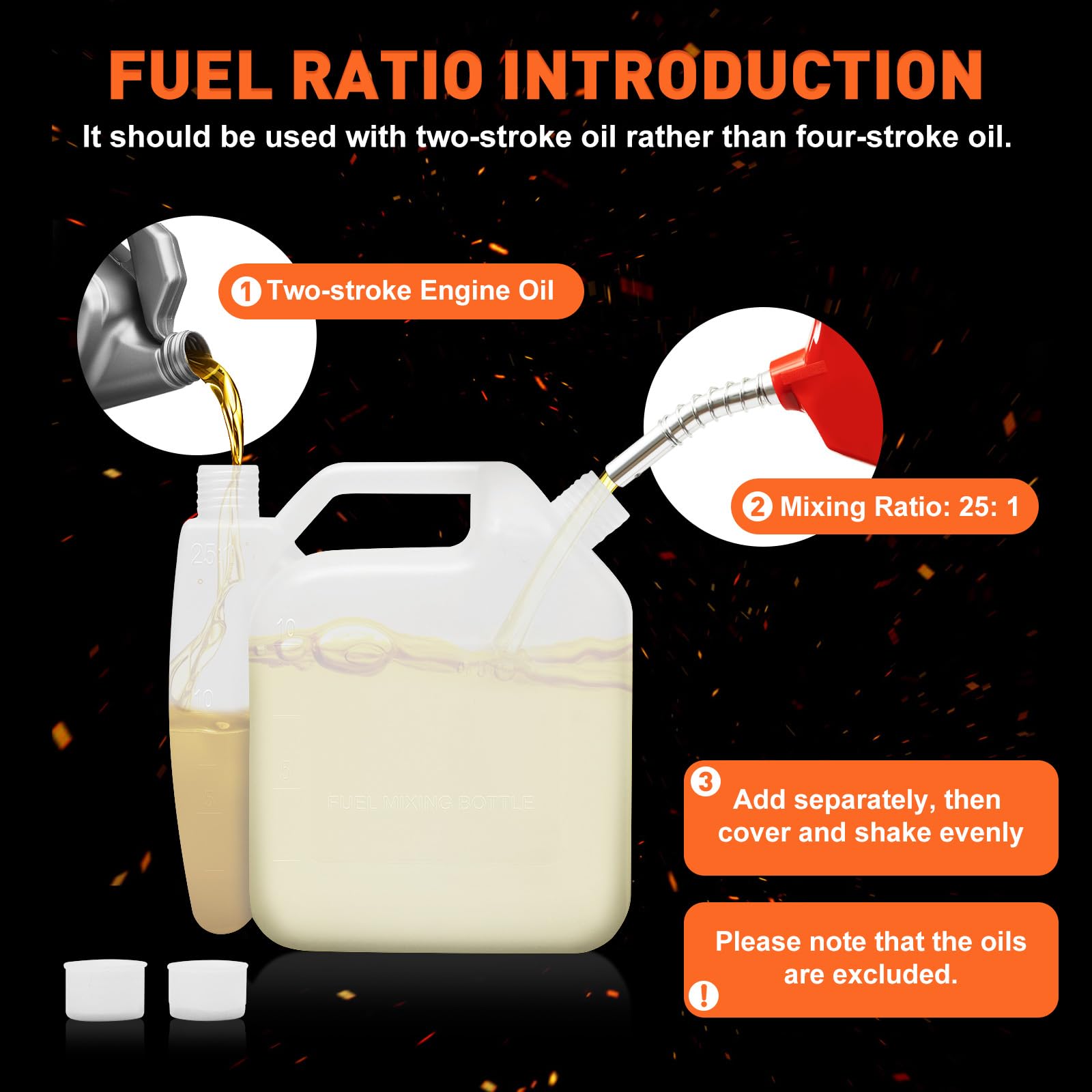

1.The tank should be filled with a mixture of oil (gasoline: two-stroke oil = 25: 1). Please add butter to the gearbox. It should be used with two-stroke oil rather than four-stroke oil, otherwise accidents will occur. All oils are excluded.
2.Please start the machine by pulling the starter quickly without stopping in the middle.
3.Press the oil bubble a few more times before starting. If there is oil coming in and out of the fuel line, which means oil has been supplied.
4.Do not use on steep slopes exceeding 15°.
5.Please do not drill ice, frozen soil, sandy clay, and sand and gravel mixed soil, or the drill bit will bend easily.
6.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
